Solar Submersible Water Pump
10 Watt Solar Powered Pumb20 Watt Solar Powered Pump30W/40W/50W Solar Powered PumpFlow stabilizing unit
Click to enlarge image(s)

Pool or Pond Solar Powered Water Pump

*Solar Panel not included


Dimension:
 (
10W): 106 x 47 x 50mm (model#P10W-BP401209)
 (20W): 127 x 58 x 90mm (model#P20W-BP501210)

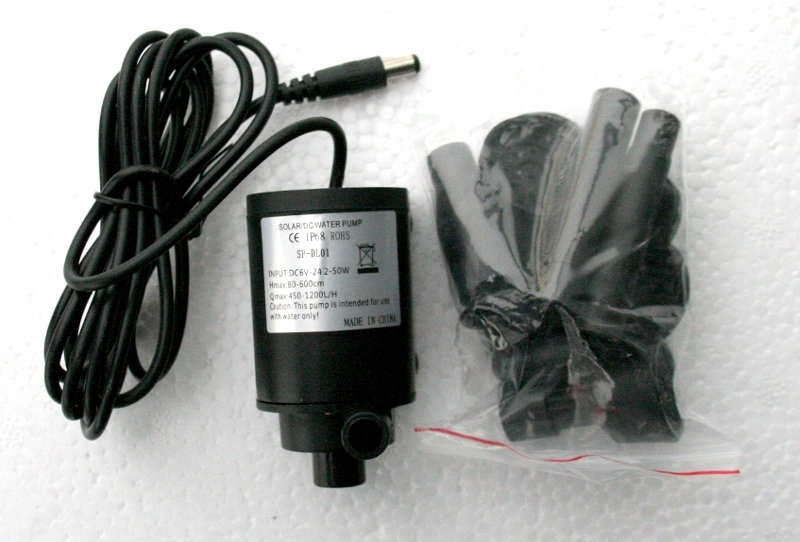

 (30W/40W/50w): 76 x 51 x 51mm (model# P250)

Voltage:

  (10W & 20W): 12V-24VDC
  (30W/40W/50w): 6V-24VDC

Max. flow rate
(10W): 470L/H@12V; 740L/H@24V (approx. 124G/H@12V; 195G/H@24V)

(20W): 980L/H@12V; 1560L/H@24V (approx. 258G/H@12V; 412G/H@24V)
(30W/40W/50w):
450-1,200 L/H (approx. 120-317G)

Max. water height
 (10W): 0.9m@12V and 2.4m@24V (approx 36"@12V; 8'10@24V)

 (20W): 1.0m@12V and 3.2m@24V (approx 39"@12V; 10'4@24V)

Cable: 15' (5m) with standard alligator clips (special plug-ins for most of our applications)(6.5' only on 30W/40W/50W)
Removable filter on 10W/20W

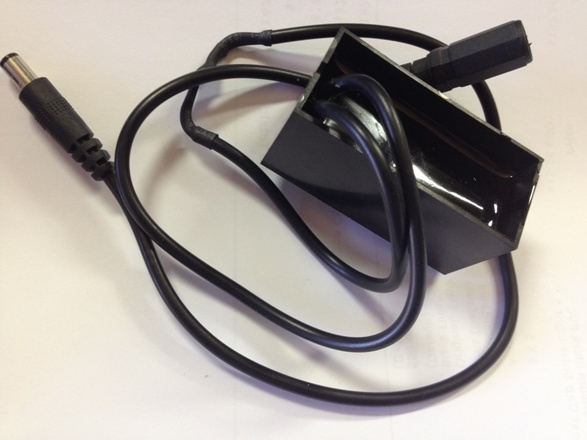

* Optional: Flow stabilizing unit (Capacitor unit which boosts water pressure, steady flow in case of momentarily sunlight shortage or too weak)

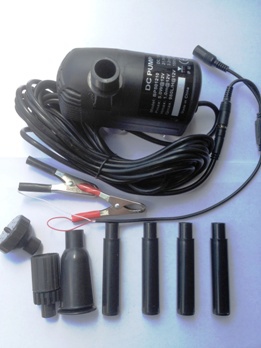

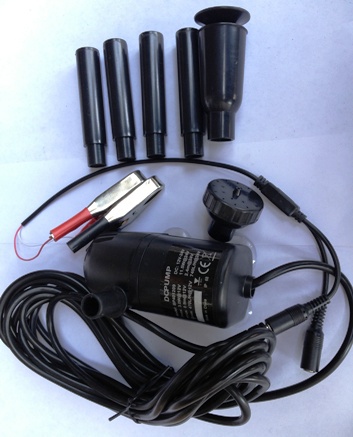

Accessories: 6 different spray pattern heads for 30W/40W/50w; 2 heads for 10W/20W

For clear and salt water use applications only. These pumps performance will be reduced if being used with lower wattage panels (solar panel not included).

Features Benefits
Quantity: One (1)
Solar Powered
Solar Panel Sold Seperatly
Daytime usage only
